Lorenz system
In this example, we prove the existence of a periodic orbit of the Lorenz system
\[\frac{\mathrm{d}}{\mathrm{d}t} u(t) = f(u(t)) \bydef \begin{pmatrix} \sigma(u_2(t) - u_1(t))\\ u_1(t)(\rho - u_3(t)) - u_2(t)\\ u_1(t) u_2(t) - \beta u_3(t) \end{pmatrix}, \qquad \sigma, \rho, \beta \in \mathbb{R}.\]
Step 1: Problem definition
We start by casting the problem of finding a periodic orbit into a corresponding zero-finding problem posed on an infinite-dimensional Banach space.
The vector field $f$ and its derivative are implemented as follows:
using RadiiPolynomial
function f(u, params)
σ, ρ, β = params
u₁, u₂, u₃ = u
return [σ*(u₂ - u₁)
u₁*(ρ - u₃) - u₂
u₁*u₂ - β*u₃]
end
function Df(u, params)
σ, ρ, β = params
u₁, u₂, u₃ = u
return [-σ*one(u₁) σ*one(u₂) zero(u₃)
ρ-u₃ -one(u₂) -u₁
u₂ u₁ -β*one(u₃)]
endGiven $\nu \ge 1$, we consider the Banach space modelling Fourier coefficients of $2\pi$-periodic functions:
\[X_{F, \nu} \bydef \left\{ u(t) = \sum_{k \in \mathbb{Z}} u_k e^{i t k} \, : \, \| u \|_{X_{F, \nu}} \bydef \sum_{k \in \mathbb{Z}} |u_k| \nu^{|k|} < \infty \right\}.\]
This space is naturally equipped with the discrete convolution $* : X_{F, \nu} \times X_{F, \nu} \to X_{F, \nu}$ given component-wise by, for any $u, w \in X_{F, \nu}$,
\[(u * w)_k \bydef \sum_{l \in \mathbb{Z}} u_{k - l} w_l, \qquad k \in \mathbb{Z},\]
so that $u(t) w(t) = (u * w)(t)$.
The Banach space $X_{F, \nu}$ is a suitable space to represent each component of a periodic solution of the Lorenz system. Indeed, it is a standard result from ODE theory that analytic vector fields yield analytic solutions.[1]
Define the Banach space
\[X \bydef (X_{F, \nu})^3 \times \mathbb{C},\]
endowed with the norm
\[\|x\|_X \bydef \sum_{j=1}^3 \|u^{(j)}\|_{X_{F, \nu}} + |\tau|, \qquad \text{for all } x = (u^{(1)}, u^{(2)}, u^{(3)}, \tau) \in X.\]
After rescaling time $s \mapsto t(s) = \tau s$ to normalize the period to $2\pi$, we seek a zero of the mapping $F : X \to X$ given by
\[F(x) \bydef \begin{pmatrix} \displaystyle \frac{\mathrm{d}}{\mathrm{d}s} u - \tau f(u) \\ \Phi_\xi (u) \\ \end{pmatrix}, \qquad \text{for all } x = (u^{(1)}, u^{(2)}, u^{(3)}, \tau) \in \text{domain}(F),\]
where $t \mapsto \xi(t)$ is a fixed approximatation of the derivative of the periodic solution, and $\Phi_\xi : X_{F, \nu}^3 \to \mathbb{C}$ is the phase condition given by, for any $u \in X_{F, \nu}$,
\[\Phi_\xi (u) \bydef \sum_{j = 1}^3 \sum_{k \in \mathbb{Z}} (\xi^{(j)}_k)^\dagger u_k^{(j)},\]
which removes the time translation invariance of the periodic solution. Here, the superscript $\dagger$ denotes the complex conjugate.
The mapping $F$ and its Fréchet derivative are implemented as follows:
function F(x, params, ξ_)
u, τ = block(x)
ξ = block(ξ_)
return [Derivative(1) .* block(u) - τ[1] * f(block(u), params),
[adjoint(ξ[1]) adjoint(ξ[2]) adjoint(ξ[3])] * [block(u, j) for j = 1:3]]
end
function DF(x, params, ξ_)
u, τ = block(x)
ξ = block(ξ_)
M = Matrix{Any}(undef, 2, 2)
L = [Derivative(1) 0*I 0*I
0*I Derivative(1) 0*I
0*I 0*I Derivative(1)]
M[1,1] = L - τ[1] * Multiplication.(Df(block(u), params))
M[1,2] = [LinearOperator.(-f(block(u), params));;]
M[2,1] = [adjoint(ξ[1]) adjoint(ξ[2]) adjoint(ξ[3])]
M[2,2] = [LinearOperator(0);;]
return M
endConsider the fixed-point operator $T : X \to X$ defined by
\[T(x) \bydef x - A F(x),\]
where $A : X \to X$ is an operator corresponding to an approximation of $DF(\bx)^{-1}$, for some numerical zero $\bx = (\bar{u}^{(1)}, \bar{u}^{(2)}, \bar{u}^{(3)}, \bar{\tau}) \in X$ of $F$.
Consider the truncation operator is defined as
\[(\Pi_{\le K} u)_k \bydef \begin{cases} u_k, & |k| \le K,\\ 0, & |k| > K, \end{cases} \qquad \text{for all } u \in X_{F, \nu}.\]
Using the same symbol, this projection extends naturally to $X$ by acting on each component as follows $\Pi_{\le K} x \bydef (\Pi_{\le K} u^{(1)}, \Pi_{\le K} u^{(2)}, \Pi_{\le K} u^{(3)}, \tau)$, for all $x = (u^{(1)}, u^{(2)}, u^{(3)}, \tau) \in X$. In all cases, we define the tail operator $\Pi_{> K} \bydef I - \Pi_{\le K}$.
Step 2: Approximate zero (floating-point arithmetic)
We numerically compute an approximate zero by performing a finite-dimensional truncation of the problem and iterating Newton's method.
Given an initial guess, the approximate zero is obtained by running Newton's method on the truncated problem, namely $\Pi_{\le K} \circ F \circ \Pi_{\le K}$.
σ, ρ, β = 10.0, 28.0, 8/3
K = 40
u_guess = zeros(ComplexF64, Fourier(K, 1.0)^3)
block(u_guess, 1)[1:2:5] =
[-2.9 - 4.3im,
1.6 - 1.1im,
0.3 + 0.4im]
block(u_guess, 2)[1:2:5] =
[-1.2 - 5.4im,
3.0 + 0.8im,
-0.4 + 1.1im]
block(u_guess, 3)[0:2:4] =
[ 23,
3.8 + 4.7im,
-1.8 + 0.9im]
block(u_guess, 1)[-5:2:-1] .= conj.(block(u_guess, 1)[5:-2:1])
block(u_guess, 2)[-5:2:-1] .= conj.(block(u_guess, 2)[5:-2:1])
block(u_guess, 3)[-4:2:0] .= conj.(block(u_guess, 3)[4:-2:0])
ξ = differentiate(u_guess)
τ_guess = 1.5/(2π) # approximate inverse of the frequencyFor an input x_guess representing an element of $\Pi_{\le K} X$, the newton function will automatically perform the truncation $\Pi_{\le K}$:
x_guess = Sequence(Fourier(K, 1.0)^3 × ScalarSpace()^1, [coefficients(u_guess) ; τ_guess])
x_bar, newton_success = newton(x -> (F(x, (σ, ρ, β), ξ), DF(x, (σ, ρ, β), ξ)), x_guess; verbose = true)Newton's method: Inf-norm, tol = 1.0e-12, ϵ = 2.220446049250313e-16, maxiter = 15, convergence criterion: |F(x)| ≤ tol
Iteration |F(x)| |DF(x)\F(x)| ETA (s)
-----------------------------------------------------------
0 | 3.4596e+00 | 6.7203e-01 | 0.0e+00
1 | 4.7511e-02 | 5.4840e-02 | 2.4e+02
2 | 1.1086e-04 | 4.5266e-05 | 1.1e+02
3 | 6.2087e-10 | 8.7640e-10 | 6.8e+01
4 | 1.9827e-14 | 4.1035e-15 | 4.7e+01Step 3: Approximate inverse (floating-point arithmetic)
We proceed to construct the approximate inverse $A \approx DF(\bar{x})^{-1}$ at the numerical approximation x_bar. Because $A$ is used within the rigorous estimates, we construct it using standard floating-point arithmetic and immediately convert it to interval arithmetic for subsequent bounded steps.
σ_interval, ρ_interval, β_interval = interval(10), interval(28), interval(8)/interval(3)
params_interval = (σ_interval, ρ_interval, β_interval)
ξ_interval = interval(ξ)
conjugacy_symmetry!(x_bar) # impose real-valued Fourier series
x_bar_interval = interval(x_bar)
F_interval = F(x_bar_interval, params_interval, ξ_interval)
DF_interval = DF(x_bar_interval, params_interval, ξ_interval)
Π = Projection(space(x_bar_interval))
A_K_interval = interval(inv(mid(Π * DF_interval * Π)))
A_tail_11 = (interval(I) - Projection(space(x_bar_interval)[1])) * Integral(1)
A_tail_12 = interval(zeros(ScalarSpace()^1, Fourier(0, 1.)^3))
A_tail_21 = interval(zeros(Fourier(0, 1.)^3, ScalarSpace()^1))
A_tail_22 = interval(zeros(ScalarSpace()^1, ScalarSpace()^1))
A_tail = [A_tail_11 A_tail_12
A_tail_21 A_tail_22]
A = block(A_K_interval) + A_tailStep 4: Estimating the bounds (interval arithmetic)
Let $R > 0$. Since $T \in C^2(X, X)$ we may use the second-order Radii Polynomial Theorem so that we need to estimate
\[\begin{aligned} Y &\ge \|T(\bar{x}) - \bar{x}\|_{X},\\ Z_1 &\ge \|DT(\bar{x})\|_{\mathscr{L}(X, X)},\\ Z_2 &\ge \sup_{x \in B(\bar{x}, R)} \|D^2 T(x)\|_{\mathscr{BL}(X, X)}. \end{aligned}\]
After some work, we find
\[\begin{aligned} Y &= \|\Pi_{\le 2K} A \Pi_{\le 2K} F(\bar{x})\|_{X_{T, \nu}}, \\ Z_1 &= \|\Pi_{\le 2K+1} - \Pi_{\le 3K+1} A \Pi_{\le 3K+1} DF(\bar{x}) \Pi_{\le 2K+1}\|_{\mathscr{L}(X, X)}, \\ Z_2 &= \max\left( \|\Pi_{\le K} A \Pi_{\le K}\|_{\mathscr{L}(X_{T, \nu}, X_{T, \nu})}, \frac{1}{K+1}\right) \max\Big( 2 (\bar{\gamma} + R), \\ &\qquad \max\left(\sigma + \|\rho-\bar{u}^{(3)}\|_{X_{F, \nu}} + \|\bar{u}^{(2)}\|_{X_{F, \nu}} + 2R, \sigma + 1 + \|\bar{u}^{(1)}\|_{X_{F, \nu}} + R, \|\bar{u}^{(1)}\|_{X_{F, \nu}} + R + \beta\right) \Big). \end{aligned}\]
Since $Z_2$ depends on $R$, we make the heuristic choice $R = 10Y$.
The computer-assisted proof leading to the a posteriori rigorous error estimate on x_bar is then completed by evaluating the formulas algebraically with interval arithmetic:
ν = interval(1)
X_F = Ell1(GeometricWeight(ν))
X_F³ = NormedCartesianSpace(X_F, Ell1())
X = NormedCartesianSpace((X_F³, Ell1()), Ell1())
#- Y bound
Π_2K = Projection(Fourier(2K, interval(1))^3 × ScalarSpace()^1)
Y = norm(A * Π_2K * F_interval, X)
#- Z₁ bound
Π_2Kp1 = Projection(Fourier(2K+1, interval(1))^3 × ScalarSpace()^1)
Z₁ = opnorm(Π_2Kp1 - A * (DF_interval * Π_2Kp1), X)
#- Z₂ bound
R = exact(10 * sup(Y))
u₁_bar_interval, u₂_bar_interval, u₃_bar_interval = block(block(x_bar_interval, 1))
τ_bar_interval = block(x_bar_interval, 2)[1]
Z₂ = max(opnorm(A_K_interval, X), inv(interval(K+1))) *
max(exact(2) * (abs(τ_bar_interval) + R),
max(σ_interval + norm(ρ_interval - u₃_bar_interval, X_F) + R + norm(u₂_bar_interval, X_F) + R,
σ_interval + 1 + norm(u₁_bar_interval, X_F) + R,
norm(u₁_bar_interval, X_F) + R + β_interval))
#
ie, contraction_success = interval_of_existence(Y, Z₁, Z₂, R; verbose = true)┌ Info: success: interval found
│ Y = Interval{Float64}(5.077833199386161e-10, 5.084074128926812e-10, com, false)
│ Z₁ = Interval{Float64}(0.3218173216315629, 0.3218173216315654, com, false)
│ Z₂ = Interval{Float64}(1388.9363619100084, 1388.9363619100184, com, false)
│ R = ExactReal{Float64}(0.0000000050840741289268119386510455027551602658064666684367693960666656494140625)
│ Δ = Interval{Float64}(0.45993033294789865, 0.4599303346815531, com, false)

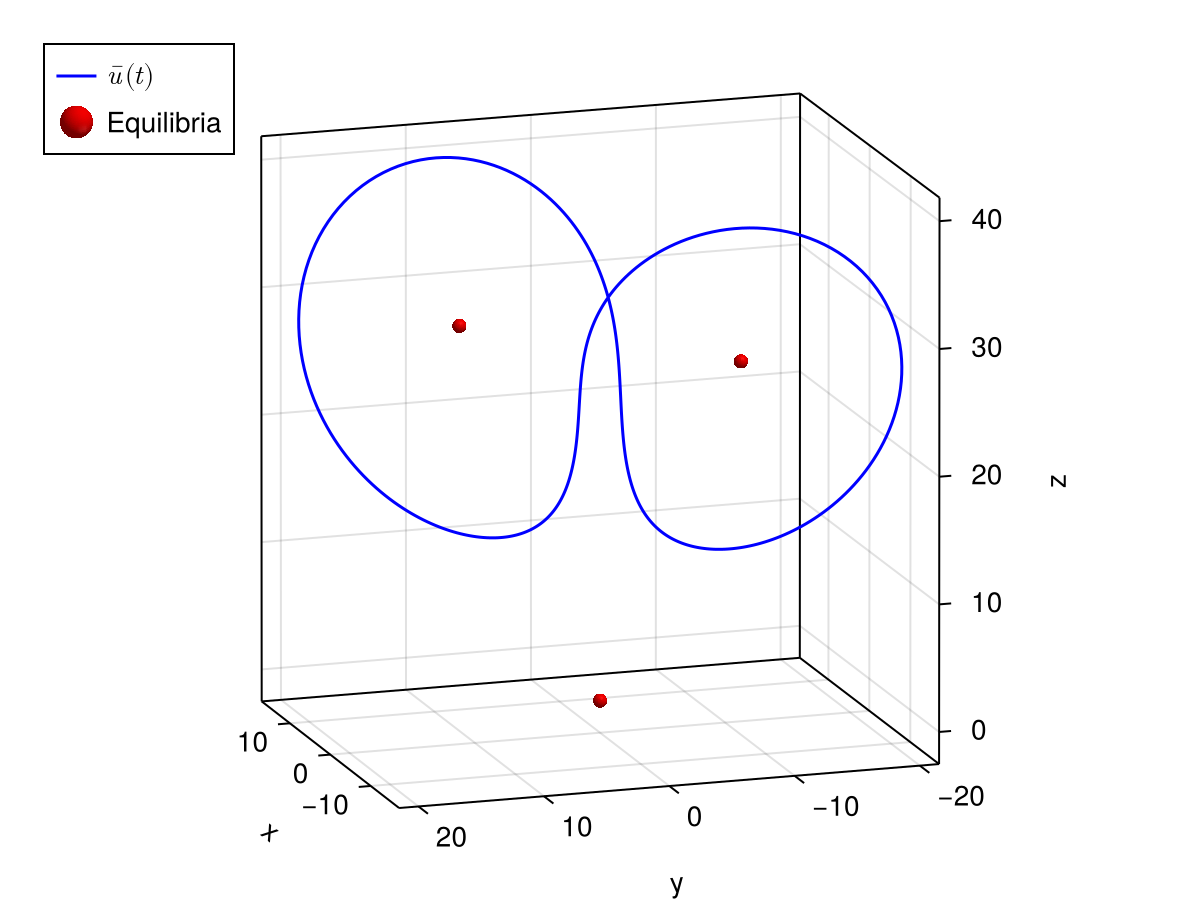

└ roots = (Interval{Float64}(7.487417832774475e-10, 7.496620316751568e-10, com, false), Interval{Float64}(0.0009765489281588038, 0.0009765489290790593, com, false))inf(ie) # smallest error7.496620316751568e-10The following figure[2] shows the numerical approximation of the proven periodic orbit (blue line) and the equilibria (red markers).
using GLMakie
fig = Figure()
ax = Axis3(fig[1,1], aspect = :data, azimuth = 0.9π, elevation = 0.25)
lines!(ax, [Point3f(real(block(x_bar, 1)(t))) for t = LinRange(-π, π, 501)];
color = :blue, label = L"\bar{u}(t)")
meshscatter!(ax, [Point3f(0, 0, 0), Point3f(-sqrt(β*(ρ-1)), -sqrt(β*(ρ-1)), ρ), Point3f(sqrt(β*(ρ-1)), sqrt(β*(ρ-1)), ρ)];
color = :red, markersize = 0.5, label = "Equilibria")
axislegend(ax; position = :lt)
